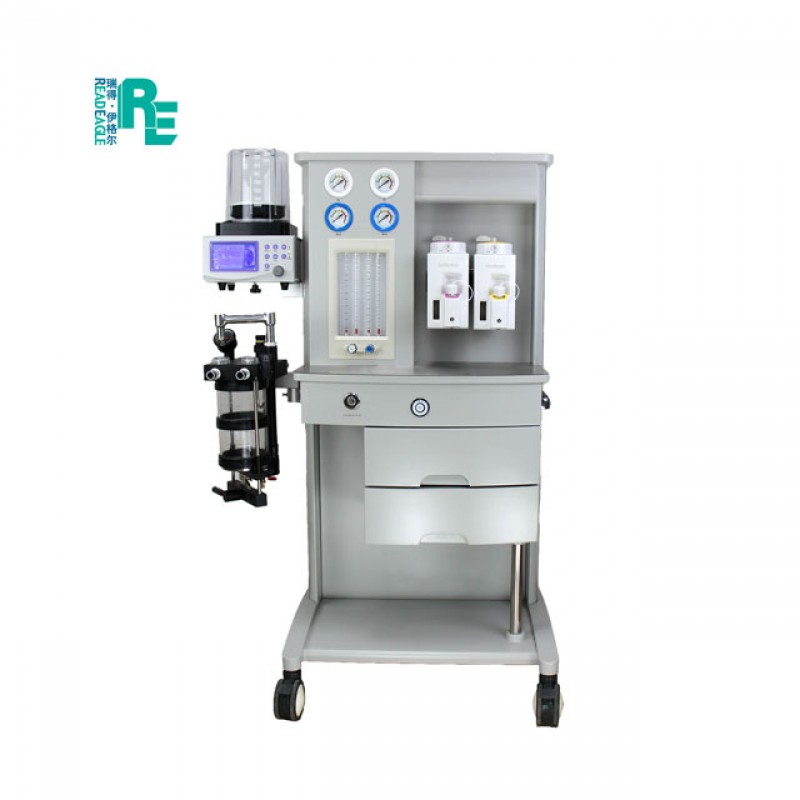

RE3154 ARIES2700 Lowest Price Pet Anesthesia Machine & High quality Animal Anesthesia Equipment with Ventilator

  • FOB Price:US $900-9000 / Vial(s)
  • Min.Order:1 Vial(s)
  • Payment Terms:L/C , T/T , D/P , PayPal , D/A
  • Favorite
Beijing Read Eagle Technology Company

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

8/10

Product Information

  • Model:ARIES2700
  • Certification:CE
  • Net Weight:102kg
  • Dimension:82*75*159CM
  • Packaging Details:China(mainland)
  • Brand Name:READEAGLE
  • Trademark:READEAGLE
  • Place of Origin:China(Mainland)
  • Warranty:1 year

Description

Specifications

Respiration mode

IPPV, SIMV, SIGH, MANUAL, STANDBY, DEMO

I:E ratio

8:1~1:8

Tidal Volume

50ml ~1600ml

Respiratory frequency

1~65bpm

PEEP

mechanical

Waveform

P-t, F-t

Patient type

Adult, pediatric

Display

10.4 TFT color screen

Pressure Setting

1-60cmH2O

Trigger Pressure

-20-20cmH2O

Mains

100-240V, 50/60Hz

Battery

12V DC, minimum 120 min (if with)

Power consumption

≤50W

Driven mode

Pneumatically Driven.
Electronically Controlled

Special Feature
♦ 5.5" SNT screen, two waveforms are showed at the same time.
♦ Aluminium alloy frame, durable and eleagant.
♦ Double vaporizer station, selectatec compatible.
♦ Independent Anesthesia Ventilator, could be driven by medical air.
♦ Classical Flowmeter of 4 tubes.
♦ Linear design, could be easily upgraded with functions: eg adding Multi-parameter Monitor, CO2 Monitor, AMIS System.
♦ Working Mode:
Semi-open, Semi-closed or Closed system
♦ Gas Supply Pressure
·O2: 0.27Mpa-0.55Mpa
·N2O: 0.27Mpa-0.55Mpa
♦ Flow meter
·4 Tube: 2 x O2 Tube, 2 x N2O Tube
·O2 Tube: 0L/min-1L/min-10L/min
·N2O Tube: 0L/min-1L/min-10L/min
·O2 and N2O Linkage Device, keep oxygen concentration not lower than 25%
·Oxygen flush: 25L/min-75L/min
Safety Function
♦ When airway pressure reach 6 kPa, APL valve will automatically release gas.
♦ When airway pressure reach 6 kPa, the Bellows will stop sending gas to patient.
♦ Monitoring parameters (Under Manual and Ventilation):
·Tidal Volume ·Minute Ventilation
·Airway Pressure ·FiO2 (Optional)
♦ Alarm parameters (Audible and/or visual signal):
·Airway Pressure high/low limit
·FiO2 high / low limit
·Low O2 Supply Pressure (when O2 Supply Pressure is lower than 0.15Mpa, will arouse Audible Alarm)
·N2O automatic Cutoff Alarm
Circle Absorber
♦ Upgraded integrated Circle Absorber, with twins large volume CO2 canister, high CO2 absorbing efficiency.
· With non-return respiratory valve and expiratory valve on it, avoid gas back flowing.
·With "Manual / Ventilation" switch on it, easily and quickly change.
·With APL valve on it, the airway pressure could be adjusted freely.
Anesthesia Vaporizer
♦ The agent output is continuous, stable, and precise
♦ Automatic compensation for Temperature, Flow and Pressure
♦ Flow Range: 0.2-15L/min
♦ Temprature Range: Operating 15-35℃
♦ Agent: Halothane, Enflurane, Isoflurane, Servofluane for choice
Optional
♦ Yoke Device
♦ Patievt Monitor
♦ CO2 Monitor
♦ AMIS
♦ AGSS
♦ FiO2
